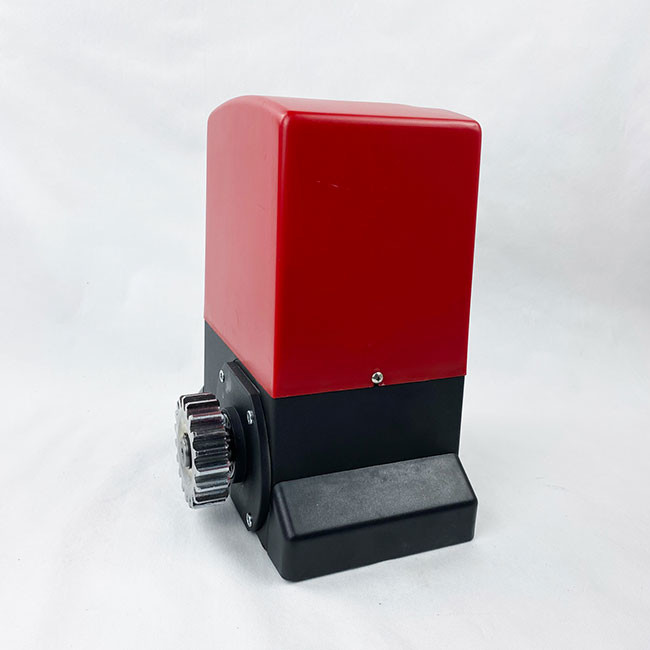

600kg Farm Gate Opener Motor Oil Immersed Electromechanical

600kg Farm Gate Opener Motor Oil Immersed Electromechanical

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G6

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Electric Slide Gate Motor Open Style: Sliding
Color: Purple Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Finishing: Powder Coated, Galvanized+PVC Coated Frame Material: Metal
Opening Pattern: Automatic Metal Type: Aluminum
Surface Treatment: Galvanized Application: Home
Usage: Garden Decoration And Factory Size: Width 27cmX Height 32cm
Advantage: Convenient Alarm Lighting: Optional
High Light:

600kg automatic farm gate opener

,

Gate Opener Motor Oil Immersed

,

600kg solar sliding gate motor

Product Description

Ac 110v 600kg Automatic Sliding Gate Openers Residential Use





Backed by 17 years or solid marketing experience to meet today's demanding needs. GATECH Systems sets new standards in quality and reliability. Combining high-quality materials with modern technology, GATECH uses international standards to meet the harsh weather conditions they are exposed to, so they can be trusted for their efficiency and superior durability. From actuators designed to provide years of smooth operation to high-speed adjustable motors, or ultra-sensitive transmitters to receivers, GATECH is made with the finest materials to protect your investment.



                                                             G6  Residential use

Power Supply 110V +/- 10%, 60Hz- Single Phase
Power of motor 250W
Output Pinion 19 Tooth Mod 4
Operating Speed 12m/min
Motor Cooling Direct Drive Fan (1400RPM)
Ambient Temperature Range From-37'F (-35°C) to 149.F (+65'C)
Motor Thermal Protection Electronic
Maximum Gate length 20m
IPRating 44
Shipping Mass of Unt 15kg(- 32 Ibs)
Maximum Gate Mass 600kgs (~1323 lbs)



Features:



Electromechanical automation, 230V AC or 400V AC and 24V DC.

Designed for intensive, industrial and collective operations

Easy installation with adjustable fixing plate

Integrated limit switch

Easily unlock the system with a key.

Electromechanical brake for immediate stop function

Internal ventilation for high-intensity work

Oil immersed gear motor.

silent operation



Insdie of motors

600kg Farm Gate Opener Motor Oil Immersed Electromechanical 0600kg Farm Gate Opener Motor Oil Immersed Electromechanical 1





The gearbox is lubricated, and the coded remote control allows transmission of 30 to 50 meters. This sliding control panel supports photocell input to provide additional safety features, and limit switches can achieve reliable and accurate positioning. The shell is made of high-quality materials with high quality





FAQ





What is the input voltage for this gate motors ?

110V input voltage.



What is the Max weight of gate?

Max weight supporting is 600kgs.



How many models do you have for sliding gate openers ?

G6,G8,G15,G20,G30



What is the frequncy of your remote control for this sliding gate motors?

Remote control models are 433Hz.



What is the longest remote control distance in meters?

Long range distance reach 100m.



How many gate motors can be controlled by a remote control?

4 gate motors for a remote control.



Is there a requirement for the MOQ?

One unit is available,but it is sample cost. For large quantity,Please negotiable with us.

What is your payment term?

We accept TT, Letter of credit at sight.



How long is your product warranty?

AII our products carry a full 2 years major parts warranty.



What is the delivery time?

Normally within 15 days, depends on the product season and quantity
