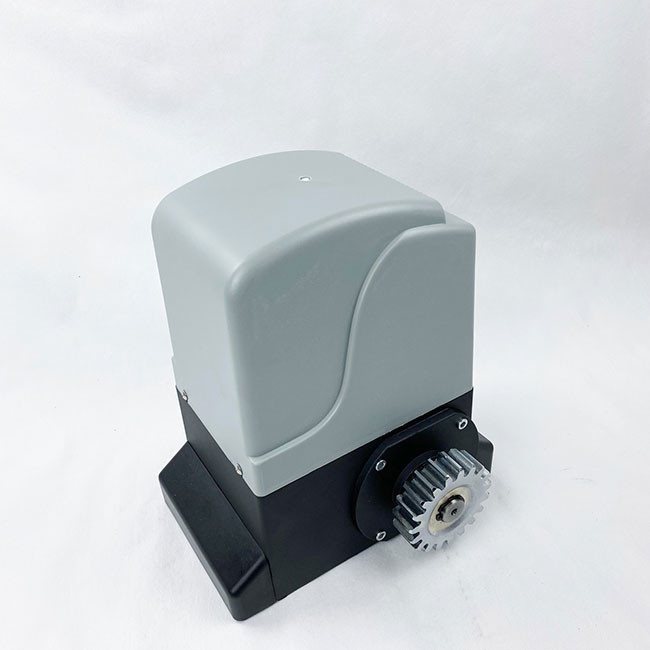

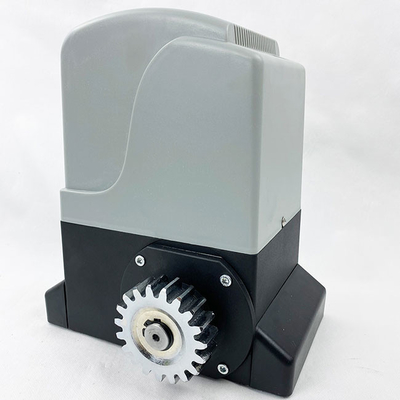

27*32cm Automatic Sliding Gate Opener PVC Coated 60Hz 19 Tooth Mod 4 Pinion

27*32cm Automatic Sliding Gate Opener PVC Coated 60Hz 19 Tooth Mod 4 Pinion

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G6

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Slide Gate Operator Worm Gear Open Style: Sliding
Color: Red,purple Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Finishing: Powder Coated,Galvanized+PVC Coated Frame Material: Metal
Opening Pattern: Automatic Metal Type: Aluminum
Surface Treatment: Galvanized Application: Park,Store
Usage: Factory And Community Size: Width 27cmX Height 32cm
Advantage: Strong, Easy Entrance Alarm Lighting: Optional
High Light:

27*32cm Automatic Sliding Gate Opener

,

Automatic Sliding Gate Opener PVC Coated

,

27*32cm residential sliding gate opener

Product Description

Ac 220v Single Phase 600kg Automatic Sliding Gate Operators Home Use



G6 automatic sliding gate operator is equipped with a built-in control panel, built-in 433 MHZ and electromechanical or magnetic limit switch.

Reliability and safety features enable the operator to maintain excellent quality.



G6 series is light duty gate motors and support standard sliding gate with 600kg in weight.Galvanized steel gear rack is one of the necessary for this gate motor to work.

                                                             G6  Residential use

Power Supply 110V +/- 10%, 60Hz- Single Phase
Power of motor 250W
Output Pinion 19 Tooth Mod 4
Operating Speed 12m/min
Motor Cooling Direct Drive Fan (1400RPM)
Ambient Temperature Range From-37'F (-35°C) to 149.F (+65'C)
Motor Thermal Protection Electronic
Maximum Gate length 20m
IPRating 44
Shipping Mass of Unt 15kg(- 32 Ibs)
Maximum Gate Mass 600kgs (~1323 lbs)



Standard door weight supported is 600 kg;

Silent operation < 60dB;

Opening speed 12 meter / min;

Gearbox is lubricated;

Coded remote control allows transmission distances of 30 to 50 meters;

Supports beam input for additional safety features;

The limit switch adopts heavy-duty micro switch;

The positioning is reliable and accurate;

Superior quality with premium materials;





Copper wire for inide of engine



27*32cm Automatic Sliding Gate Opener PVC Coated 60Hz 19 Tooth Mod 4 Pinion 027*32cm Automatic Sliding Gate Opener PVC Coated 60Hz 19 Tooth Mod 4 Pinion 1

The gearbox is lubricated, and the coded remote control allows transmission of 30 to 50 meters. This sliding control panel supports photocell input to provide additional safety features, and limit switches can achieve reliable and accurate positioning. The shell is made of high-quality materials with high quality





FAQ





What is the input voltage for this gate motors ?

110V input voltage.



What is the Max weight of gate?

Max weight supporting is 600kgs.



How many models do you have for sliding gate openers ?

G6,G8,G15,G20,G30



What is the frequncy of your remote control for this sliding gate motors?

Remote control models are 433Hz.



What is the longest remote control distance in meters?

Long range distance reach 100m.



How many gate motors can be controlled by a remote control?

4 gate motors for a remote control.



What is your MOQ?

1 set is okay. More quantity with nice discount.



What is your payment term?

Payment<=1000USD, 100% in advance. Payment>=1000USD, 35% T/T in advance ,balance before shippment.



How long is your product warranty?

The product warranty period is 24 months.



What is the delivery time?

Normally 10-15 days after payment.
