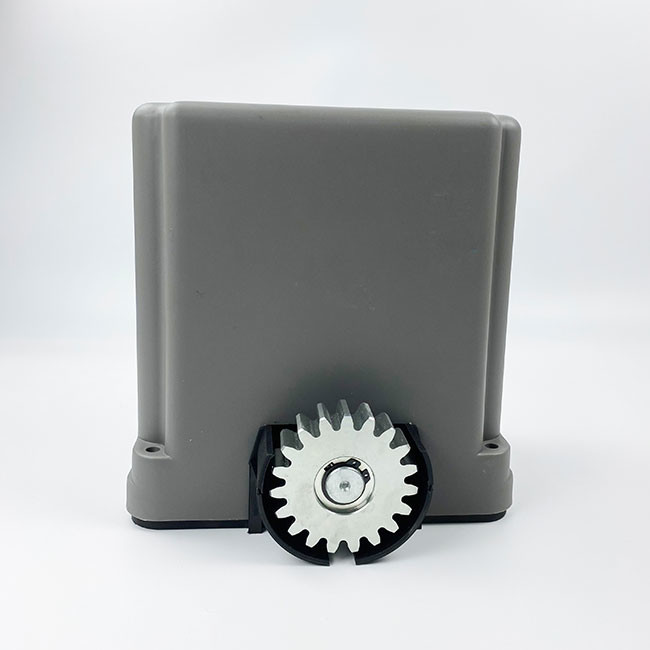

Fence 500kg Electric Sliding Gate Opener DC 24V Powder Coated

Fence 500kg Electric Sliding Gate Opener DC 24V Powder Coated

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G5D

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Sliding Gate Motor Original Open Style: Sliding
Color: Blue,Red,Black,Grey,White,Green Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Finishing: Powder Coated,Galvanized+PVC Coated Frame Material: Metal
Opening Pattern: Automatic Metal Type: Aluminum
Surface Treatment: Galvanized Application: Garage Door,Farm
Usage: Garden Decoration,Factory,Construction Site,House Size: Width 27cmX Height 32cm
Advantage: Safety, Economical And Practical Alarm Lighting: Optional
High Light:

500kg Electric Sliding Gate Opener

,

Electric Sliding Gate Opener DC 24V

,

500kg smart sliding gate opener 24V

Product Description

Lightweight DC 24V 500kg Electric Sliding Gate Operators Residential Use



GATECH Mini gear motors for sliding doors are designed for residential gates weighing from 400kg to 800kg with DC,Small size and high power. GATECH’S Mini range of sliding door operators combines ease of installation with enormous power and reduced size, allowing for greater versatility in tight spaces. Dc voltage gate motors built-in battery backup system and transformer, which is more safe and easily installation.



   Lightweight DC24 Electric Sliding Gate Openers Residential Use

Power Supply 110V or 230V +/- 10%, 60Hz- Single Phase
Power of motor 150W
Output Pinion 19 Tooth Mod 4
Operating Speed 12m/min
Motor Cooling Direct Drive Fan (1400RPM)
Ambient Temperature Range From-37'F (-35°C) to 149.F (+65'C)
Motor Thermal Protection Electronic
Maximum Gate length 20m
IPRating 44
Shipping Mass of Unit 15.5 kgs
Maximum Gate Mass 500 kgs



Sliding gate weight up to 500kg in 24V versions;

Built-in control panel, built-in 433 MHZ and electromechanical or magnetic limit switch;

Lightweight gate motors and support standard sliding gate with 500kg;

Basic accessories is with galvanized steel gear rack and opinion,such as 12mm with mode 4;



GATECH nylon pinions are made with a special polymer formula. The elastic properties of nylon and metal racks create minimal friction noise, while remaining stiff enough to easily support doors up to 500kg.





Carton package

Fence 500kg Electric Sliding Gate Opener DC 24V Powder Coated 0Fence 500kg Electric Sliding Gate Opener DC 24V Powder Coated 1





FAQ





What is the input voltage for this gate motors ?

110V  or 230V input voltage.



What is the Max weight of gate?

Max weight supporting is 500kgs.



How many models do you have for sliding gate openers ?

G6,G8,G15,G20,G30,G5D



What is the frequncy of your remote control for this sliding gate motors?

Remote control models are 433Hz.



What is the longest remote control distance in meters?

Long range distance reach 100m.



How many gate motors can be controlled by a remote control?

4 gate motors for a remote control.



Is there a requirement for the MOQ?

One unit is available,but it is sample cost. For large quantity,Please negotiable with us.



What kind of payments do you support?

Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance against of copy of B/L.If you have another questions, pls feel free to contact us.



What is your warranty terms?

2 year warranty



How long is your delivery time?

For standard products, 10-25 days are available.
