Commercial Industrial Roller Shutter Door Motors 165mm OD 1500kg

Commercial Industrial Roller Shutter Door Motors 165mm OD 1500kg

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE,ROHS
Model Number: GR1500A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Type: Industrial Roller Door Motors Color: BlackBule,Green
Phase: Three Phase,Single Phase,Single/Three-phase,Single-phase Product Name: Rolling Door Motor
Warranty: 1 Year Material: Aluminium,Iron,Copper Wire,Aluminum Alloy And ABS
Application: Industrial Door,Shopping Mall
High Light:

1500kg Industrial Roller Shutter Door Motors

,

Industrial Roller Shutter Door Motors 165mm

,

1500kg smart drive roller shutter motor

Product Description

Automatic Garage Door 1500kg Heavy Duty AC Roller Shutter Motor Commercial Use





GATECH is specializing in the production of rolling shutter motors and its control system.Our main lines include AC and DC rolling door motors. We have a special team, who focuses on producing electric rolling doors more than 10 years. And we have our own marketing channel, which diversification and customer-oriented. Our products have been exported to more than 20 countries and regions in the world such as Iran, Vietnam,Brazil,India etc. Our rolling door motor has its excellent quality.



1. Nice designs with powerful drive.

2. With overheat protection, overload protection.

3. Easy to install and maintain, long useful life.

4. Could operate by remote control, push button, and manual chain.

5. Could work with UPS, so without worrying about power off.

6. With Chain-break protection device, also could work with safety by brake, ensure the safety of your life and property.

7. bracket size:505*280*3.0/ 280*280*3.0, 495*280*3.0/280*280*3.0, also other size can be chosen.





Model

Rated output torque

(N.m)

Rated output speed

(r/min)

Motor power

(w)

Rated voltage

(V/Hz)

Rated current

(A)

Continuos working time(min)

Durm dube outer diameter

(mm)

Max lifting force

(kg.f)

Max lifting height

(m)

AC300-1P 225 5.4 200 220/50 2.8 8 114 300 6
AC600-1P 412 5.4 300 220/50 3.3 8 140 600 6
AC800-1P 647 4 400 220/50 4.7 8 165 800 8
AC1000-1P 809 4 400 220/50 4.9 8 165 1000 8
AC1500-1P 809 3.5 700 220/50 8.2 8 165 1500 9

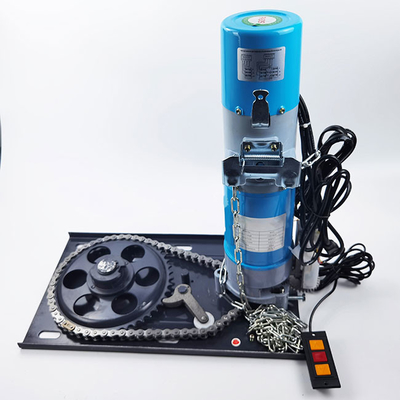

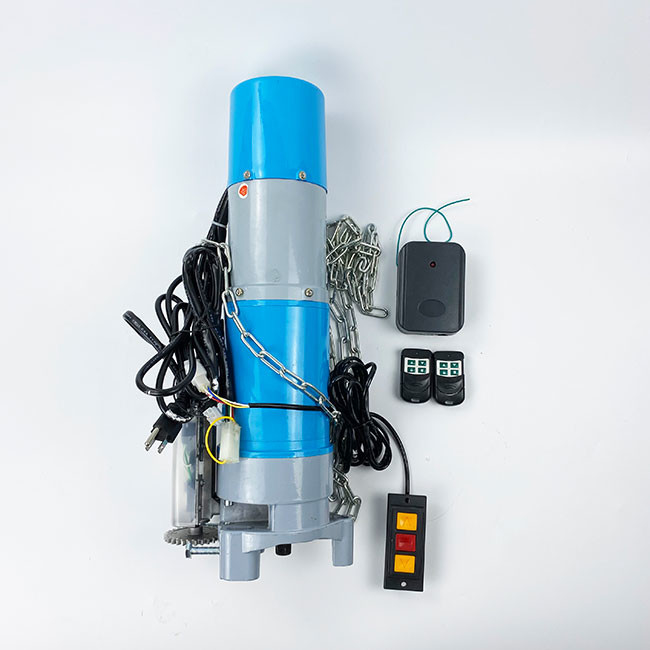

Details for rolling shutter

Commercial Industrial Roller Shutter Door Motors 165mm OD 1500kg 0



Commercial Industrial Roller Shutter Door Motors 165mm OD 1500kg 1



FAQ





What is your MOQ?

One unit is available,but it is sample cost. For large quantity,Please negotiable with us.



What is your payment term?

For sample ,T/T in advance.For customize order,35% T/T in advance,balance before shipping.



How long is your product warranty?

Two years when you got goods.



What is the delivery time?

For item in stock, it will take 2-3days to seaport after payment.
