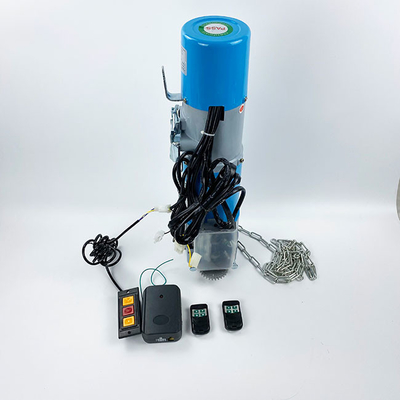

400W AC Roller Shutter Motor Single Phase Three Phase 1000kg 4.7A 4.9A

400W AC Roller Shutter Motor Single Phase Three Phase 1000kg 4.7A 4.9A

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE,ROHS
Model Number: GR1500A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Type: Industrial Roller Door Motors Color: Bule,Green
Phase: Three Phase,Single Phase,Single/Three-phase,Single-phase Product Name: Rolling Shutter Side Motors
Warranty: 1 Year Material: Aluminium,Iron,Copper Wire,Aluminum Alloy And ABS
Application: Industrial Door,warehouse
High Light:

400W AC Roller Shutter Motor

,

AC Roller Shutter Motor Single Phase

,

4.9A ultimate roller shutter motor

Product Description

Ac 380v Three Phase 1500kg AC roller shutter motors Industrial Use





Garage door rolling door motors have been widely used in our lives.Such as buildings, garages, shopping malls, factories, warehouses, docks, airports, etc.As a standard accessory for garage doors, it brings people the most convenient way to open them, saving time and effort. Our rolling door motor has its excellent quality.



1. Nice designs with powerful drive.

2. With overheat protection, overload protection.

3. Easy to install and maintain, long useful life.

4. Could operate by remote control, push button, and manual chain.

5. Could work with UPS, so without worrying about power off.

6. With Chain-break protection device, could also work with safety by brake, ensure the safety of your life and property.

7. bracket size:505*280*3.0/ 280*280*3.0, 495*280*3.0/280*280*3.0, also other size can be chosen



Model

Rated output torque

(N.m)

Rated output speed

(r/min)

Motor power

(w)

Rated voltage

(V/Hz)

Rated current

(A)

Continuos working time(min)

Durm dube outer diameter

(mm)

Max lifting force

(kg.f)

Max lifting height

(m)

AC300-1P 225 5.4 200 220/50 2.8 8 114 300 6
AC600-1P 412 5.4 300 220/50 3.3 8 140 600 6
AC800-1P 647 4 400 220/50 4.7 8 165 800 8
AC1000-1P 809 4 400 220/50 4.9 8 165 1000 8
AC1500-1P 809 3.5 700 220/50 8.2 8 165 1500 9





Chain for rolling shuttmer

400W AC Roller Shutter Motor Single Phase Three Phase 1000kg 4.7A 4.9A 0400W AC Roller Shutter Motor Single Phase Three Phase 1000kg 4.7A 4.9A 1



FAQ





What is your MOQ?

One unit is available,but it is sample cost. For large quantity,Please negotiable with us.



What is your payment term?

For sample ,T/T in advance.For customize order,35% T/T in advance,balance before shipping.



How long is your product warranty?

Two years when you got goods.



What is the delivery time?

For item in stock, it will take 2-3days to seaport after payment.
