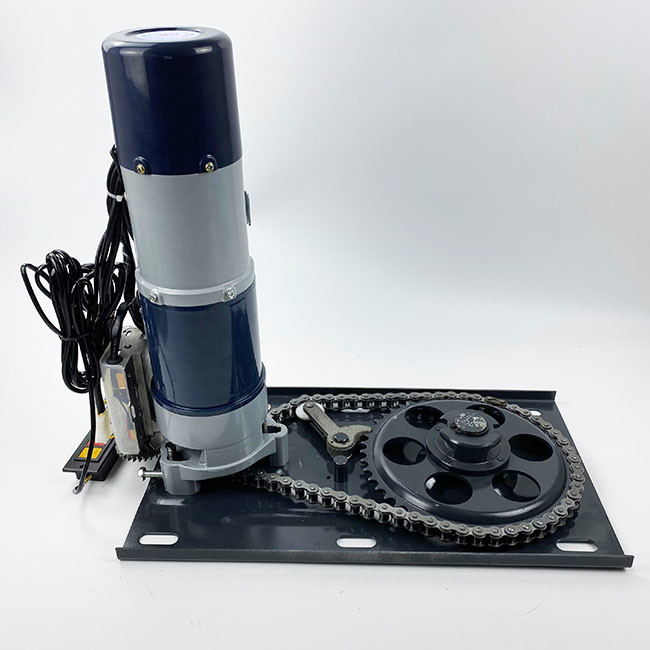

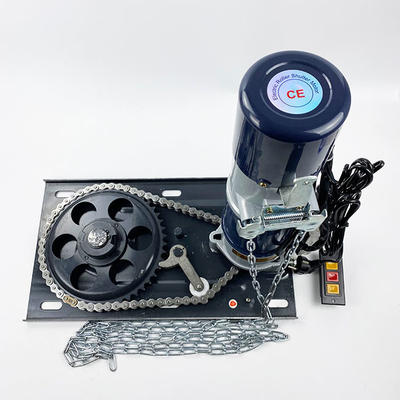

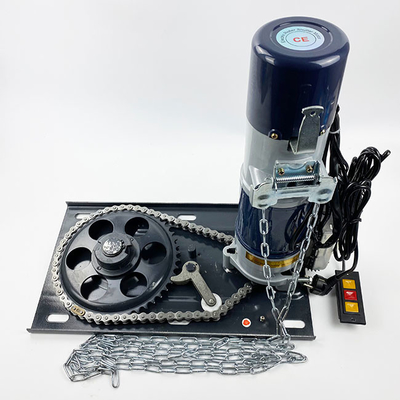

800kg AC Roller Shutter Motor 200W 300W Rolling Shutter Opener

800kg AC Roller Shutter Motor 200W 300W Rolling Shutter Opener

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE,ROHS
Model Number: GR800A

Payment & Shipping Terms:

Minimum Order Quantity: 50
Price: Negotiation
Packaging Details: Carton package
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Type: AC Roller Shtter Motor Color: Red,Black
Phase: Three Phase,Single Phase,Single/Three-phase,Single-phase Product Name: Motor Rolling Door
Warranty: 1 Year Material: Aluminium,Iron,Copper Wire,Aluminum Alloy And ABS
Application: Home Appliance,Residential Garage Doors
High Light:

800kg AC Roller Shutter Motor

,

300W Rolling Shutter Opener

,

800kg roll up shutter motor

Product Description

Universal Garage Door 800kg AC Roller Shutter Motors Commercial Use



Rolling door motors have been widely used in our lives.Such as buildings, garages, shopping malls, factories, warehouses, docks, airports, etc.As a standard accessory for garage doors, it brings people the most convenient way to open them, saving time and effort. Our rolling door motor has its excellent quality.

1. Optional: copper or aluminum AC electric rolling door motor;

2. Beautiful appearance,advanced structure,strong horsepower;

3. Low noise, small vibration, low power consumption;

4. A motor overheating protection device(140℃);

5. Imported electrical components, security and stability;

6. Lightweight, small size, easy installation, long life and reliable performance;

7. Easy manual operation when power could also be equipped with electrical storage devices;

8. Assembly could be equipped with remote control, to achieve long-range operation.



Model

Rated output torque

(N.m)

Rated output speed

(r/min)

Motor power

(w)

Rated voltage

(V/Hz)

Rated current

(A)

Continuos working time(min)

Durm dube outer diameter

(mm)

Max lifting force

(kg.f)

Max lifting height

(m)

AC300-1P 225 5.4 200 220/50 2.8 8 114 300 6
AC600-1P 412 5.4 300 220/50 3.3 8 140 600 6
AC800-1P 647 4 400 220/50 4.7 8 165 800 8
AC1000-1P 809 4 400 220/50 4.9 8 165 1000 8
AC1500-1P 809 3.5 700 220/50 8.2 8 165 1500 9





Plug for Rolling shutter motors

800kg AC Roller Shutter Motor 200W 300W Rolling Shutter Opener 0800kg AC Roller Shutter Motor 200W 300W Rolling Shutter Opener 1





FAQ





What is your MOQ?

One unit is available,but it is sample cost. For large quantity,Please negotiable with us.



What is your payment term?

For sample ,T/T in advance.For customize order,35% T/T in advance,balance before shipping.



How long is your product warranty?

Two years when you got goods.



What is the delivery time?

For item in stock, it will take 2-3days to seaport after payment.
