AC ROHS Single Phase Roller Door Motor Commercial Use 800kg

AC ROHS Single Phase Roller Door Motor Commercial Use 800kg

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE,ROHS
Model Number: GR800AC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Type: AC Roller Shtter Motor Color: Red,Grey
Phase: Three Phase,Single Phase,Single/Three-phase,Single-phase Product Name: Garage Door Opener Wifi Switch
Warranty: 1 Year Material: Aluminium,Iron,Copper Wire,Aluminum Alloy And ABS
Application: Home Appliance,Shopping Mall
High Light:

ROHS Single Phase Roller Door Motor

,

Single Phase Roller Door Motor 800kg

,

800kg roller shutter door electric motors

Product Description

Ac 220v Single 800kg AC Roller Shutter Motors Commercial Use



Small size and high power. GATECH’S Mini range of roller shutter motor combines ease of installation with enormous power and reduced size, allowing for greater versatility in tight spaces.



Model

Rated output torque

(N.m)

Rated output speed

(r/min)

Motor power

(w)

Rated voltage

(V/Hz)

Rated current

(A)

Continuos working time(min)

Durm dube outer diameter

(mm)

Max lifting force

(kg.f)

Max lifting height

(m)

AC300-1P 225 5.4 200 220/50 2.8 8 114 300 6
AC600-1P 412 5.4 300 220/50 3.3 8 140 600 6
AC800-1P 647 4 400 220/50 4.7 8 165 800 8
AC1000-1P 809 4 400 220/50 4.9 8 165 1000 8
AC1500-1P 809 3.5 700 220/50 8.2 8 165 1500 9



Supporting garage door up to 1000kg in 220V version

Built-in 433 MHZ and electromechanical limit switch;

Packed in 2 transmitters with 50m long range

100% copper wire inside the motor.

24 months quality life warranty;



Installation tips:

1.When there is a thunderstorm, try to disconnect the external power supply;

2.When using the rolling shutter door operator, the operator shall not leave the site. If any abnormality is found, the power supply should be cut off immediately, and the fault should be eliminated by re-use.

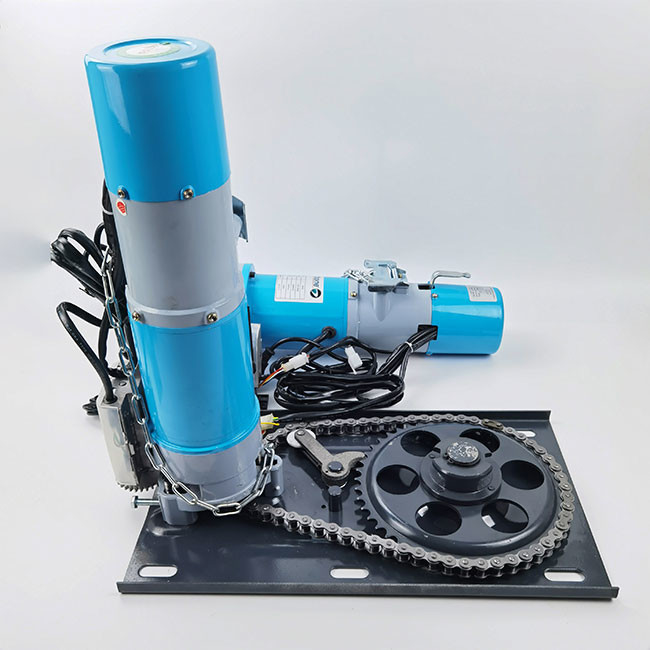

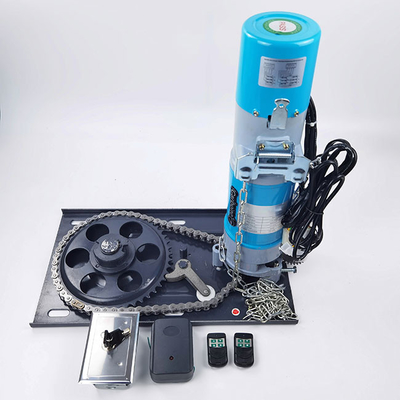

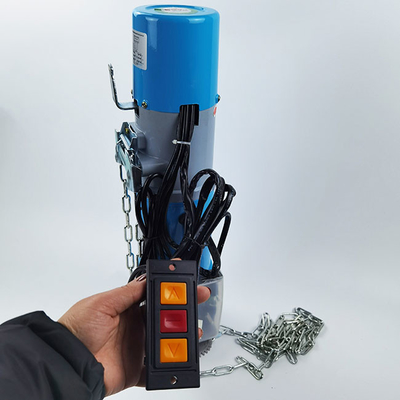

Details for Rolling shutter motor

AC ROHS Single Phase Roller Door Motor Commercial Use 800kg 0AC ROHS Single Phase Roller Door Motor Commercial Use 800kg 1











FAQ





What is your MOQ?

One unit is available,but it is sample cost. For large quantity,Please negotiable with us.



What is your payment term?

For sample ,T/T in advance.For customize order,35% T/T in advance,balance before shipping.



How long is your product warranty?

Two years when you got goods.



What is the delivery time?

For item in stock, it will take 2-3days to seaport after payment.
