Automatic Sliding Gate Motor 1000 Kg 550W 110V 220V Galvanized

Automatic Sliding Gate Motor 1000 Kg 550W 110V 220V Galvanized

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G10

Payment & Shipping Terms:

Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Automatic Gate Motor Open Style: Sliding
Color: Gray Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Finishing: Powder Coated,Galvanized+PVC Coated Frame Material: Metal
Opening Pattern: Automatic Metal Type: Aluminum
Surface Treatment: Galvanized Application: Public Building
Usage: Construction Site Size: Width 27cmX Height 32cm
Advantage: Easy Life Alarm Lighting: Optional
High Light:

220V Automatic Sliding Gate Motor

,

550W Automatic Sliding Gate Motor

,

Galvanized Automatic Sliding Gate Opener

Product Description

Sliding Gate Motor 1000 Kg 550W 110V 220V With Built-In Control Board Gate Motor Sliding Gate Opener



We are leading manufacture and trading company in electronica industry for more than 10 years also have a professional R&D team.With years of export experience along with excellent quality, advanced services and competitive prices, Gatech has won numerous customers' trust and support. Welome to inquire samples for testing,you could place your order after you testing.Our product range includes: sliding gate operator, swing gate opener, rolling shutter motor,automatic boom barrier and access control equipment such as: remote control, receiver, flash lamp,gear rack,control panel, photocell, wifi controller.



Specifications G10
Power supply 220V/50Hz;110V/60Hz
Power of Motor 550W
Output torque 22Nm
Operating Speed 12m/min
Maximum Gate length 20m
Shipping Mass of unit 12.7kg
Maximum Gate Mass 1000kgs



Main Features

1) Stylish appearance design and built-in control panel, easy installation and extremely compact. No external controller or receiver is required.

2) Built-in limit switch to allow the motor to turn off after the cycle is complete.

3) Built-in manual override with 2 unique override keys provided in case of emergency or power failure.

4) The motor is constructed of all-metal gears for durability.

5) Soft start and slow stop.

6) Resistance sensitivity and automatic closing delay time are adjustable.

7) Stop/reverse when an obstacle is encountered during door opening/closing.

8) Reliable mechanical spring limit or magnetic limit is optional.

9) 12 months warranty, lifetime after-sale service.

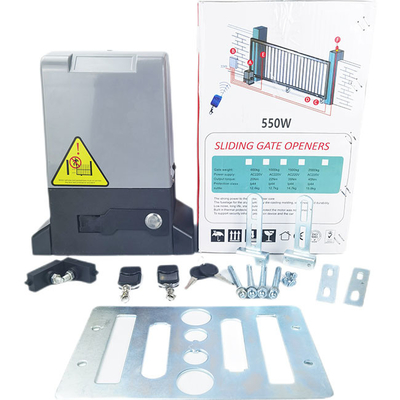

Complete set included:

- 1 x Motor with built in Control Panel

- 2 x Remote Controls

- 2 x Manual clutch Keys

- 1 x Motor mounting base plate

- 1 x Instruction Manual



Our sliding door motor has many advantages. Its dust cover can effectively block rainwater, insects and dust, which can greatly increase the service life of the motor.

Automatic Sliding Gate Motor 1000 Kg 550W 110V 220V Galvanized 0

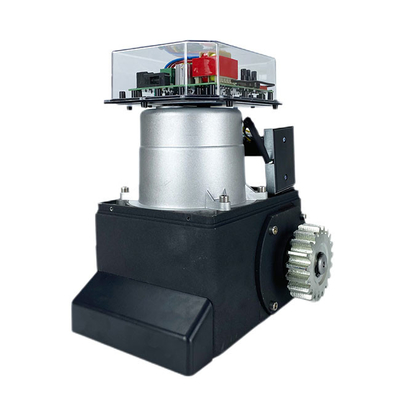

Using pure copper core, the resistance is small and the performance is strong. All raw materials are strictly controlled and kept improving to ensure the efficient operation of the motor.

Automatic Sliding Gate Motor 1000 Kg 550W 110V 220V Galvanized 1

Automatic Sliding Gate Motor 1000 Kg 550W 110V 220V Galvanized 2

Automatic Sliding Gate Motor 1000 Kg 550W 110V 220V Galvanized 3



Packaging



Packing Details : Standard Export Carton, then in pallet

Delivery Details : Depends on the quantity



Shipping

1.FedEx/DHL/UPS/TNT for samples, Door-to-Door;

2.By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

3.Customers specifying freight forwarders or negotiable shipping methods!

4.Delivery Time: 3-7 days for samples; 5-25 days for batch goods.



Payment terms

1.Payment: T/T,Paypal,Western Union ,30% deposit before production,70%

balance paid before delivery

2.Shipping freight are quoted based on your requests

3.Discounts are offered based on order quantities



FAQ

1. What is minimum order quantity(MOQ)? No MOQ, 1 sample is available.

  • What types of shipping method you have? We can ship by ocean shipping for bulk order, UPS/TNT/DHL for sample order.
  • How many days it take if we place order? 1-2 days for sample order, 3-5 days for the order within 30 sets, 5-7 days for 100 sets.

4. What kind of certificates do you have? We have CE certificate for motor, and MSDS for batteries.
