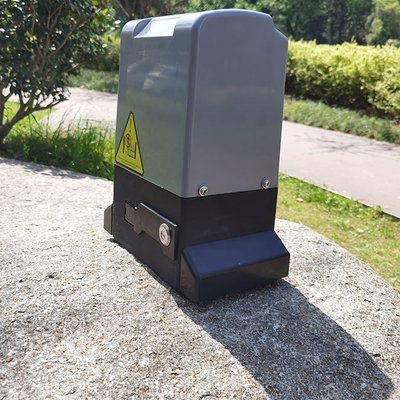

Heavy Duty 2000 Kg Sliding Gate Operator With 2 Remote Controls
Product Details:
| Place of Origin: | China |
| Brand Name: | GATECH |
| Certification: | CE |
| Model Number: | G20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2000 sets per month |
|
Detail Information |
|||
| Name: | Motors For Sliding Gates | Open Style: | Sliding |
|---|---|---|---|
| Color: | Gray | Material: | Aluminum |
| Type: | Entry Doors | Feature: | Waterproof |
| Frame Finishing: | Powder Coated,Galvanized+PVC Coated | Frame Material: | Metal |
| Opening Pattern: | Automatic | Metal Type: | Aluminum |
| Surface Treatment: | Galvanized | Application: | Public Building |
| Usage: | Construction Site | Size: | Width 27cmX Height 32cm |
| Advantage: | Easy Life | Alarm Lighting: | Optional |
| High Light: | 2000 Kg Sliding Gate Operator,Electric Sliding Gate Opener 2000Kg,Powder Coated Sliding Gate Operator |
||
Product Description
Heavy Duty 2000 Kg Sliding Gate Operator With 2 Remote Controls And Built In Control Board motors for sliding gates
Gatech technology built-in control board for sliding gate opener, which make it automatical stop against extra resistances.This controller is the latest product developed by our company. It contains an overheating protector. When the motor temperature reaches the rated value, it will automatically power-off and protect the motor. Electronic parts are connected by SMT technology, more safety, more stable, more secure and reliable.
| Specifications | G20 |
| Power supply | 220V/50Hz;110V/60Hz |
| Power of Motor | 1200W |
| Output torque | 45Nm |
| Operating Speed | 12m/min |
| Maximum Gate length | 20m |
| Shipping Mass of unit | 15.8kg |
| Maximum Gate Mass | 2000kgs |
Specification:
1. Totally integrated electrical mechanical system (excludes racks).
2. Control board interface for optional impact-proof infrared photocells.
3. Can connect flashing light and keypad and electric lock and so on.
4. Automatic delayed closing.
5. Adjustable resistance sensitivity.
6. Auto gate stop and re-open when an obstacle is encountered.
7. Wireless remote control or wired remote control are optional.
8. 24VDC sliding gate opener can connect transformer and back up battery.
Using pure copper core, the resistance is small and the performance is strong. All raw materials are strictly controlled and kept improving to ensure the efficient operation of the motor.
|
Our sliding door motor has many advantages. Its dust cover can effectively block rainwater, insects and dust, which can greatly increase the service life of the motor. |
 |
|
Using pure copper core, the resistance is small and the performance is strong. All raw materials are strictly controlled and kept improving to ensure the efficient operation of the motor. |
|
|
|
|
Parts List
1.Install backplane*1
2.Bracket*1
3.Expansion screw*4
4.Screw*4
5.Gasket*2
6.Magnet*2
7.Remote control*2
8.Clutch key*2
