Commercial Roller Shutter Door Electric Motors 1500kg Small Vibration
Product Details:
| Place of Origin: | China |
| Brand Name: | GATECH |
| Certification: | CE，ROHS |
| Model Number: | GR1500A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 sets per month |
|
Detail Information |
|||
| Type: | Industrial Roller Door Motors | Color: | Blue,White |
|---|---|---|---|
| Phase: | Three Phase,Single Phase,Single/Three-phase,Single-phase | Product Name: | Motor Garage Door |
| Warranty: | 1 Year | Material: | Aluminium,Iron,Copper Wire,Aluminum Alloy And ABS |
| Application: | Industrial Door,Workshop | ||
| High Light: | Commercial Roller Shutter Door Electric Motors,Roller Shutter Door Electric Motors 1500kg,1500kg remote rolling shutter motor |
||
Product Description

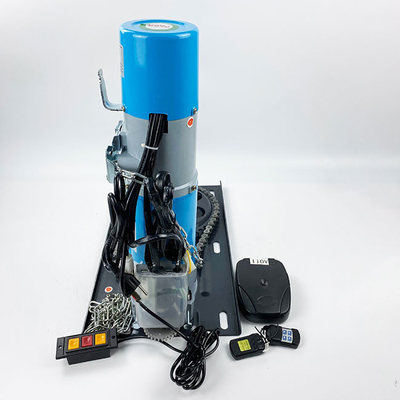

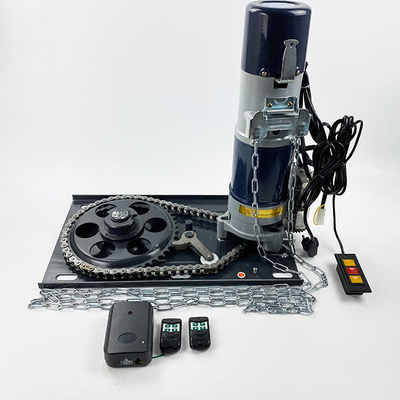

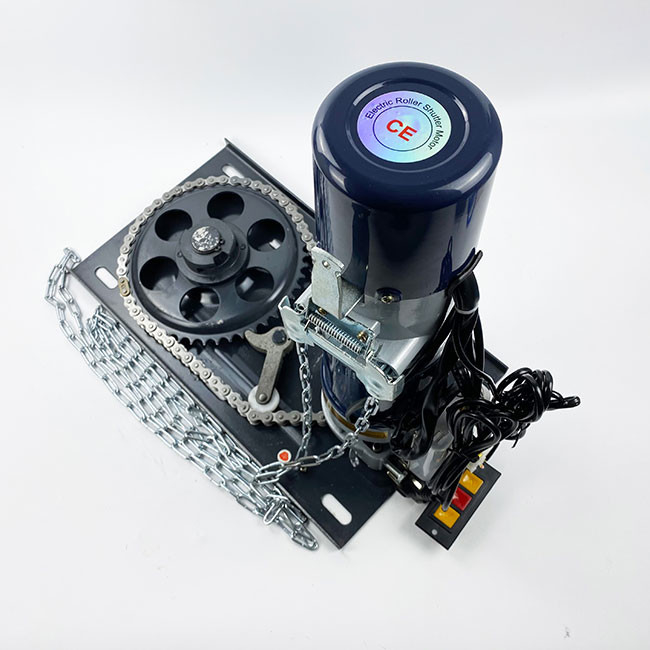

Universal Garage Door 1500kg AC Roller Shutter Motors Commercial Use
Supporting garage door up to 1500kg in 220V version
Low noise, small vibration and low power consumption
100% copper wire inside the motor.
With broken chain protection device, it can also work safely by braking to ensure the safety of your life and property.
Short-time working system, one-phase continuous operation does not exceed 5 minutes, three-phase continuous operation does not exceed 10 minutes.
| Model |
Rated output torque (N.m) |
Rated output speed (r/min) |
Motor power (w) |
Rated voltage (V/Hz) |
Rated current (A) |
Continuos working time(min) |
Durm dube outer diameter (mm) |
Max lifting force (kg.f) |
Max lifting height (m) |
| AC300-1P | 225 | 5.4 | 200 | 220/50 | 2.8 | 8 | 114 | 300 | 6 |
| AC600-1P | 412 | 5.4 | 300 | 220/50 | 3.3 | 8 | 140 | 600 | 6 |
| AC800-1P | 647 | 4 | 400 | 220/50 | 4.7 | 8 | 165 | 800 | 8 |
| AC1000-1P | 809 | 4 | 400 | 220/50 | 4.9 | 8 | 165 | 1000 | 8 |
| AC1500-1P | 809 | 3.5 | 700 | 220/50 | 8.2 | 8 | 165 | 1500 | 9 |
Chain for rolling shutter motor
FAQ
What is your MOQ?
One unit is available,but it is sample cost. For large quantity,Please negotiable with us.
What is your payment term?
For sample ,T/T in advance.For customize order,35% T/T in advance,balance before shipping.
How long is your product warranty?
Two years when you got goods.
What is the delivery time?
For item in stock, it will take 2-3days to seaport after payment.
