600Kg Copper Roll Up Shutter Motor Ac 220V Single Phase

600Kg Copper Roll Up Shutter Motor Ac 220V Single Phase

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE,ROHS
Model Number: GR600CU

Payment & Shipping Terms:

Price: Negotiation
Packaging Details: Carton package
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Type: Rolling Shutter Side Motor Color: Red,purple
Phase: Three Phase,Single Phase,Single/Three-phase,Single-phase Product Name: Rolling Door Motor Manufacturer
Warranty: 1 Year Material: Aluminium,Iron,Copper Wire,Aluminum Alloy And ABS
Application: Home Appliance,Residential Garage Doors
High Light:

Copper Roll Up Shutter Motor

,

Roll Up Shutter Motor Ac 220V

,

Single Phase AC Roller Shutter Motor

Product Description

600Kg Copper roll up shutter motor Ac 220V Single Phase With 1 Year Warranty



Electric security rolling door motors are using general AC motor with mature process, stable quality reasonable prices. Our products are being sold throughout Germany, Thailand, Vietnam, Chile and a host of other countries and regions.



1) Manufacture AC, DC, AC and DC roller door motor , design and make motors according to your request

2) AC motor: 300KG—2000KG, DC motor: 600KG—1000KG, AC and DC motor: 300KG—600KG

3) 110V/220V/380V are ok for our roller door motor .

4)With four relays inside to make sure our roller door motor to be more save.

5)100% copper material inside the motor, so it have a larger capacity and durable than other motors

6) Make dimension of roller door motor bracket system according to your request, brake system build in the bracket system

7) Professional company and professional sales makes your reliable supplier in China

Model

Rated voltage

(V/Hz)

Max lifiting force

(kg.f)

Rated output torque

(N.m)

Rated output speed

(r/min)

Motor power

(w)

Max lifiting height

(m)

Standard Barrel Dim(inch)
GR600CU 220/50 600 412 5.4 300 6 6''

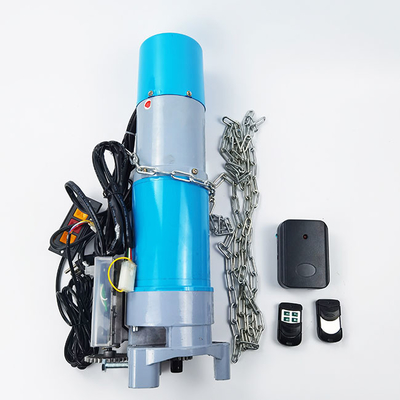

600Kg Copper Roll Up Shutter Motor Ac 220V Single Phase 0

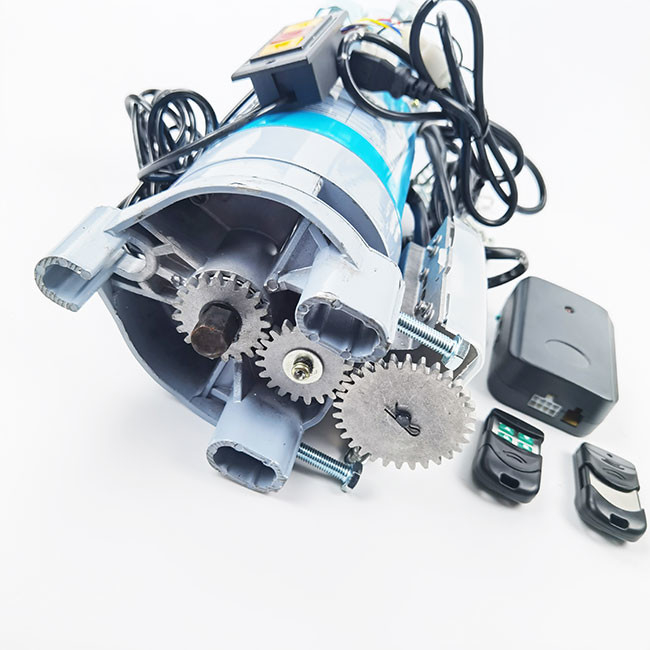

600Kg Copper Roll Up Shutter Motor Ac 220V Single Phase 1

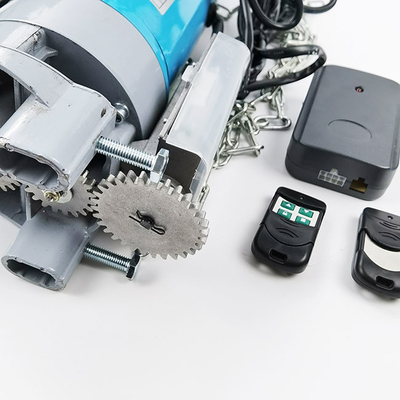

600Kg Copper Roll Up Shutter Motor Ac 220V Single Phase 2

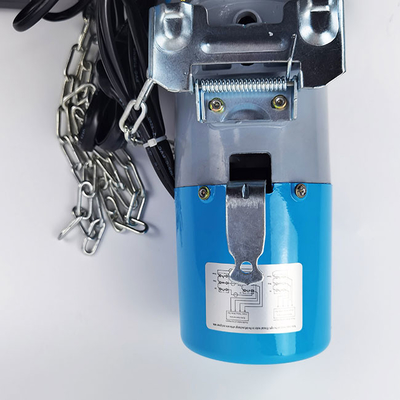

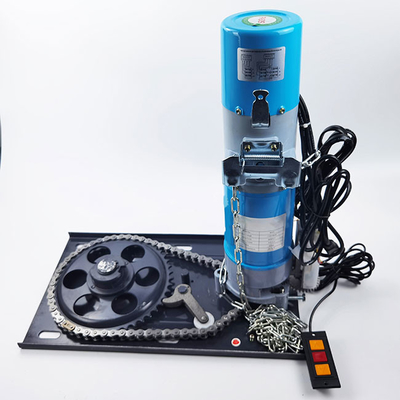

600Kg Copper Roll Up Shutter Motor Ac 220V Single Phase 3

Working Environment and Conditions:

1) Air temperature change as well as season.

2) Relative humidity:90%(25°C).

3) Voltage and frequency is in line with the product nameplate.

4)Short hour working system, continuous operation not less than 5 mins.

Delivery attention:

1. DHL: please offer your detailed address with zip code for delivery checking.

2. TNT: please kindly noted that TNT samples can't including battery.

3. Sea: please check weather you need original Bill of Lading or can be telex released.

4. China post: it takes months, and may lost on the way.

FAQ

1. Do you have your own factory?

Yes, We are a professional manufacturer of rolling door motor in zhangzhou, we have our own factory and welcome your visit.

2. What is your delivery time?

The time of delivery is about 15 days after receiving deposit, this is decided by order quantity.

3. What is the term of payment?

We accept 30% T/T in advance, and 70% against copy of B/L before shipment.

4. Can you make an OEM for me?

Yes! OEM orders is acceptable, please let's know your requirements, we'll offer you a reasonable price and make samples for you ASAP.

5. Do you provide sample?

Yes, we can provide you with sample, but there's a charge for the sample and shipping cost.
